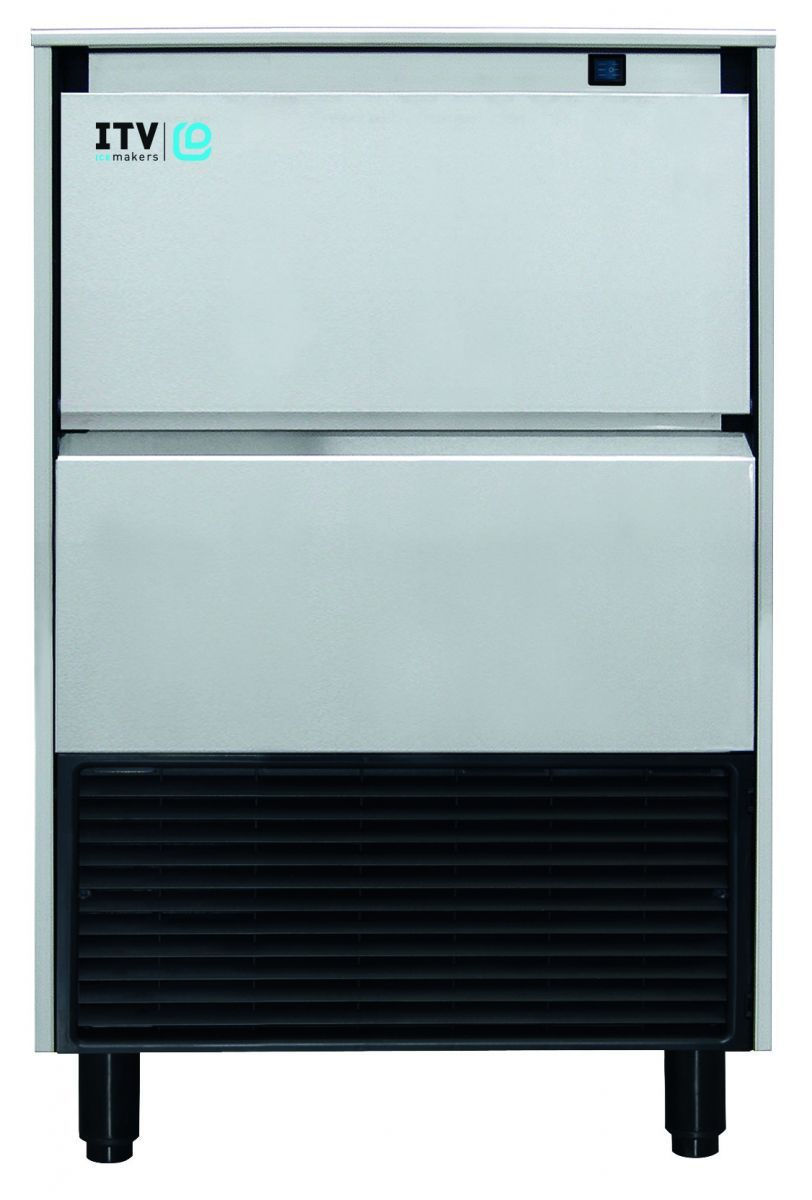

ITV GALA NG 135 LB GOURMET ICE MAKER UNDER COUNTER AIR/WATER COOLED W/WARRANTY



































                GALA Series make the classic “European Gourmet” ice cube. Distinguished from the classic cubes, these great ice cubes will offer a great option to savor your drinks, because they take longer to melt with its non-conventional larger shapes. They are the most desired ice cubes for hospitality professionals, mixologists and upscale minded consumers, ideal for the most discriminating in tastes for soft drinks and spirits.













                ITV’s patented “Spray Bar Nozzles” with Horizontal Evaporator Plate design, force water to be sprayed up under pressure, avoiding trapped gases, and not allowing calcareous build-up. You achieve the most perfect, individual, transparent and crystal-clear ice





                cubes.













                GALA Series are presented in Under counter and taller Self-Contained units. They are specially designed for small-space applications, such as bars, guest room floors, refreshment break areas, etc. You also save space, thanks to a front ventilation system, with easy accessibility for cleaning and servicing.



























                NG 135  / 115 VOLTS - 60 HZ - 1 / 22 X 24 X 32



































                FULL OR HALF CUBES AVAILABLE

















                AIR OR WATER COOLED UNITS



































































              WATER FLOW SPRAY DISTRIBUTION SYSTEM The spray nozzle, patented by ITV, does not allow calcareous build-up and produces solid transparent ice cubes which take longer to melt.





              DYNAMIC PRODUCTION The water is constantly circulating and the ice gradually forms in thin layers, avoiding trapped gasses and producing crystal clear ice cubes. Only the purest of ice cubes are produced.





              SILENT RAIN All parts in contact with water have been designed to minimize their friction resulting in a very low noise level.





              ELECTROMECHANICAL CONTROLS The machine works with electromechanical timer and thermostats. Simple, easy to comprehend and service. High reliability and low maintenance expense.





              DUAL SWITCH CONTROL External switch allows to turn the machine on/off easily. Removing the top cover, we have the ice/wash switch on one side of the electrical box.





              STRONG INOX FRAME. 304 STAINLESS STEEL CONSTRUCTION Box-type frame with stainless steel supports, makes the machine stronger and allows servicing operation without disassembling the entire machine.





              EASY ACCESS FOR SERVICE AND INSTALLATION Designed to have better access to all components making installation and servicing operations easier. One person can disassemble the entire machine with a basic screwdriver.





              FRONT VENTILATION Condensing unit permits 100% front ventilation, air inflow and outflow through the front grill. INSULATED STORAGE BIN Storage bin with polyurethane foam insulation gives higher rigidity with lower heat transmission. Isolated but not refrigerated bins.





              OPERATING LIMITS Tropicalized machines (Class T); Suitable for low temperature environments of 41° (5°C) Air and Water and high temperature environments of 109⁰F (43⁰C) (Air), 95°F (35°C) (Water) Water pressure: Min. 10 psi. (0.7 bar.)/ Max. 85 psi. (6 bar.).





              NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi. (6 bar.). ELECTRICAL SPECIFICATIONS 115V/60Hz./1 - Fuse Size 15-20 - Nema Plug Type 5-15P. NG 265—Nema Plug Type 5-20P. Also available 220V/50Hz ( Special order only). **NG 355—208-230V/60Hz/1. Nema Plug Type 6-15P.











              WARRANTY 36 months parts and labor + 24 additional months parts on compressor and evaporator
